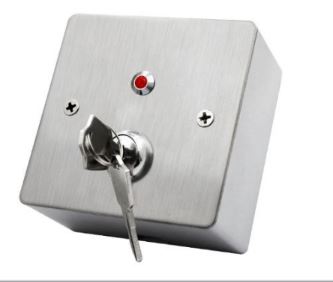

SPDT On / Off Keyswitch

The remote key stations are designed for security system ON-OFF control applications. It is built with the universal connection terminals and can be used freely in most of the security systems.

It provides switching ON contact in latch. The key stations incorporate with tamper switch and 2 LED lamps for free connections.

Send Enquiry

Specifications

  • Dimensions: 86(L) × 86(W) × 30(H) mm

  • Contact Rating: 3A / 125–250VAC

  • Output: NO / NC / COM / TAMP

  • Mechanical Life: 100,000 operations

  • Power Supply: +12V DC

  • Key Switch: Supplied with two keys

  • Installation Mode: Hollow door installation

  • Logo: Customizable

Environmental & Physical

  • Operating Temperature: –20°C to +55°C (–4°F to 131°F)

  • Operating Humidity: 0–95% RH

  • Weight: 0.098 kg

  • Panel Material: 1.7 mm thick 304 stainless steel (wire drawing finish)

Tamper & Indicators

  • Tamper Function:

    • Normal: NC / COM

    • Dismantling: NO / COM

  • LED Indicators:

    • Red LED: Standby

    • Green LED: Active

Packaging & Mounting

  • Surface Mount: M86 metal back box

  • Package Quantity: 100 pcs per carton (52 × 43 × 33 cm)
